Multi-point thermal resistance is used to measure the temperature gradient in the container or storage tank on the production site, and it is necessary to measure the temperature at multiple locations at the same time. As a temperature sensor, the multi-point thermal resistance is usually connected with the multi-channel display regulator, recorder or PLC system to measure and display the temperature at different gradient points.
I. Main technical parameters:
1. Electrical outlet: M20* 1.5NPT1/2
2. Thermal response time: < 30S
3, even wire diameter: 3, 4, 5, 6
4. Protection level: IP65
5, output form: Pt100 signal output 4~20mA output signal
6, temperature range: -200~500℃
7. Precision grade: A and B
8. Connection form: threaded flange
Ii. Characteristics
1, multi-point measurement, multi-point signal output, respectively display temperature
2, multi-point thermal resistance using armored thermal resistance components, easy to bend
3. Fast thermal response time
4, long service life

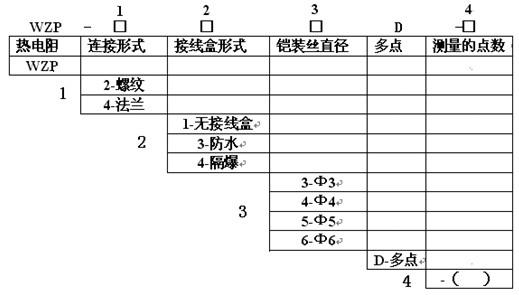

3. Product selection

Iv. Instructions for selection

The purchaser shall provide detailed site conditions

Location requirements for measuring points should be provided

count

Mounting dimension

Note: 1. Multi-point thermal resistance material shall be determined according to the measured medium or customer requirements. 2
