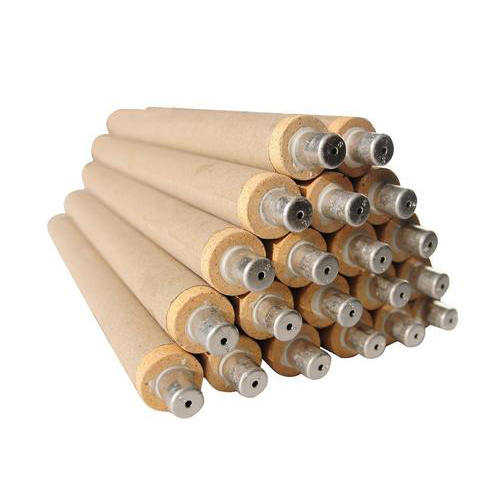

Fast thermocouple
Description
High precision, wide range of temperature measurement, low price, in line with YB4084-92 and YB/T163-1999 two rapid measurement of metal melt temperature thermocouple standards. Fast thermocouple belongs to consumable thermocouple, mainly used for fast temperature measurement of molten steel. We can according to the different needs of customers, provide a variety of length, a variety of types and a variety of slag cap consumable thermocouple. Technical parameters of fast thermocouple:
| name | Model number | Temperature range | Precision (%t) | Insulation resistance |
Tungsten-rhenium 3- tungsten-rhenium 25 | KW-602(Type D) | 0-2000 ℃ | 0.25 mm or less | 5 m Ω or higher |
Tungsten-rhenium 5- tungsten-rhenium 26 | KW-602(Type C) | 0-2000 ℃ | 0.25 mm or less | 5 m Ω or higher |
1, KS/KB/KR-602 platinum-rhodium consumable temperature measuring thermocouple, stable and excellent quality, not only widely used in domestic steel mills, but also a large number of exports to Europe and the United States every year. 1.B/T 163-1999 < Consumption thermocouple for rapid measurement of metal melt temperature >. 2.GB/T3772-98(type S), GB/T1598-98(type R), GB/T2902-98(type B) and other < thermocouple wire and indexing table >. 3.GB/T4989-94 < S.R type thermocouple compensation conductor >. Models and technical parameters of fast thermocouple:
| product | Dividing sign | Model number | Upper limit of service temperature | tolerance |
Platinum-rhodium 10-platinum | S | KS-602/604 | 1650 ℃ | + / - 5 ℃ or less |
Platinum-rhodium 13-platinum | R | KR-602/604 | 1650 ℃ | + / - 5 ℃ or less |
Platinum-rhodium 30-platinum-rhodium 6 | B | KB-602/604 | 1800 ℃ | + / - 5 ℃ or less |
Product length: 300, 600, 900, 1000, 1200mm. | ||
1. Type: PTRH 10%/Pt, Type S 2. Type: KS-602 3.z.u. Tolerance: ≤ ± 5 ℃ | 1. Type: PTRH 30%/ PTRH 6%, Type B 2. Type: KB-602 3.z.u High temperature: 1800℃ 4. Tolerance: ≤ ± 5 ℃ | 1. Type: PTRH 13%/Pt, R type 2. Type: KR-602 3.z.u High temperature: 1650℃ 4. Tolerance: ≤ ± 5 ℃ |
2. KW3/25-602 products have passed ISO-9002 quality system certification and national quality management standard enterprise certification. The product has the advantages of high precision, wide range of temperature measurement and low price. It conforms to the thermocouple standard of YB4084-92 and YB/T163-1999 for rapid measurement of metal melt temperature. Technical parameters of fast thermocouple
| name | Type number | Temperature range | Precision (℅t) | Loop resistance | Insulation resistance |
Tungsten-rhenium 3- tungsten-rhenium 25 | KW-602 | 0-2000 ℃ | 0.25 mm or less | < 3 Ω | 5 m Ω or higher |
Type: WRe3%/WRe25%, KW3/25 type 2. Model: KW3/25-602 3.z.u High temperature: 2000℃ 4. Tolerance: ≤ ± 5 ℃
