I. Overview

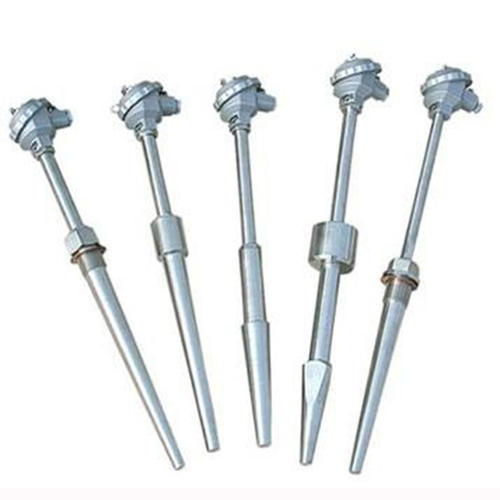

Hot sleeve thermocouple or thermal resistance is mainly used to measure the steam temperature of boiler or pipe. In order to resist the steam impact of high temperature, high pressure and high velocity, the installation and insertion depth of about 100mm is used. In order to avoid the temperature measurement error caused by the insufficient insertion depth, the overall processing protection tube with three edges, simple hot sleeve and main equipment combination welding method are used. The gap between the area of three edges and the hole in the hot sleeve is used to make the hot sleeve full of high temperature hot medium. The insertion depth is increased equivalent.

Hot-sleeve thermocouple and thermal resistance have two corresponding structures and installation forms according to the difference of pressure, temperature and flow rate used. Users can choose from them according to the use situation.

Ii. Application

Hot sleeve thermocouple is mainly suitable for steam pipes, boilers and other places where the temperature, pressure and flow rate are required.

Three, the advantages of hot sleeve thermocouple

1, all armored components, shock resistance and pressure resistance, high stability, long life.

2, armored element and protection tube bottom elastic compression structure, shorten the thermal response time and further improve the shock resistance.

3. Large cavity junction box and novel wiring device make wiring more convenient and reliable.

4. The main body and protection tube of thermocouple are separated structure, which can be replaced quickly without stopping the machine.

5, deep blind hole processing of the overall protection tube, end wall thickness uniform, no welding stress and crystal medium corrosion hazards, so pressure resistance, impact resistance, reliable use, long life, can ensure the safe operation of the unit.

6, the overall tensile 650℃ high temperature armored platinum resistance element, its shock resistance and temperature limit can meet the large units of high precision and high reliable main steam temperature measurement.

Iv. Main technical parameters

Electrical outlet: M20x1.5,NPT1/2

Connection size: M20x1.5,NPT1/2

Protection level: IP65

V. Models and specifications
